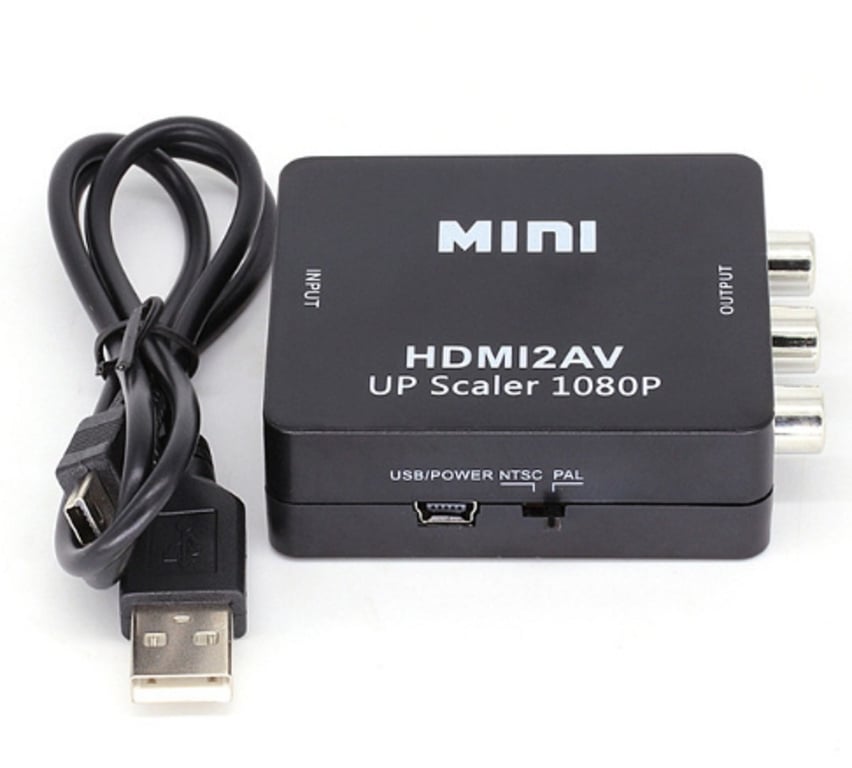

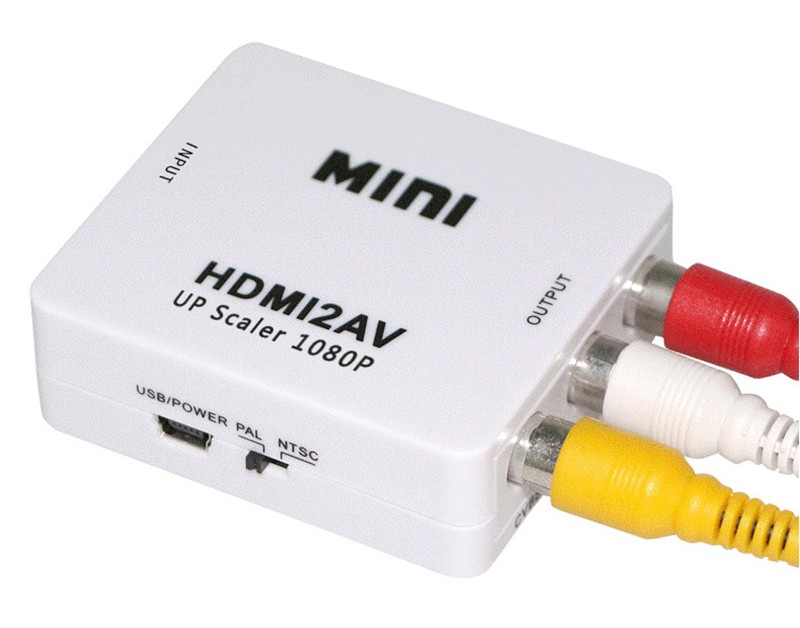

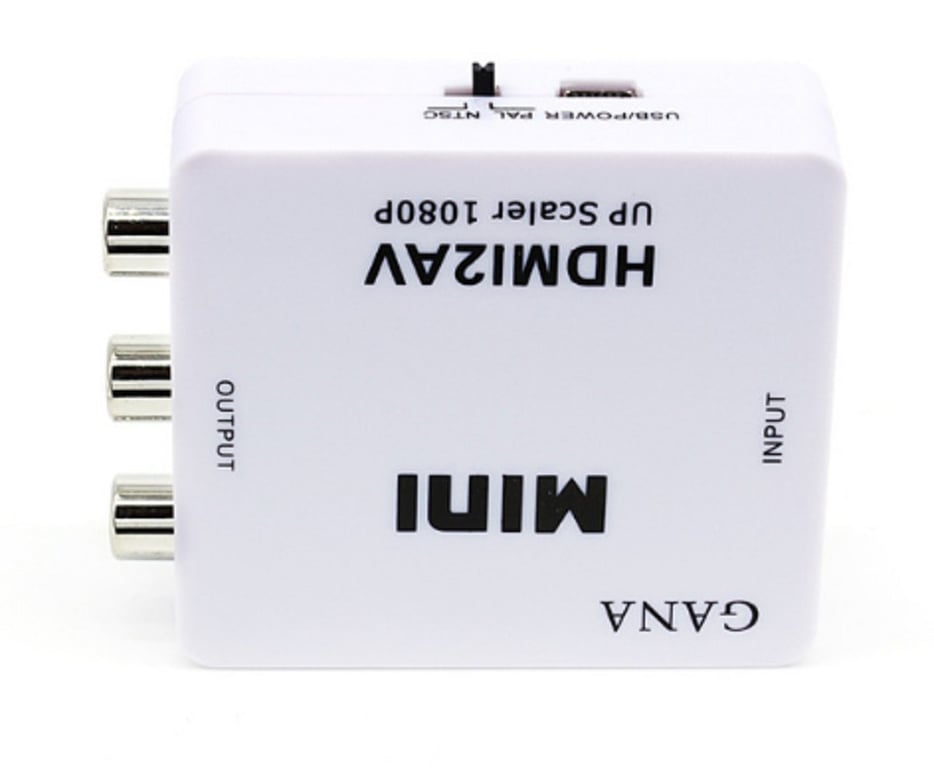

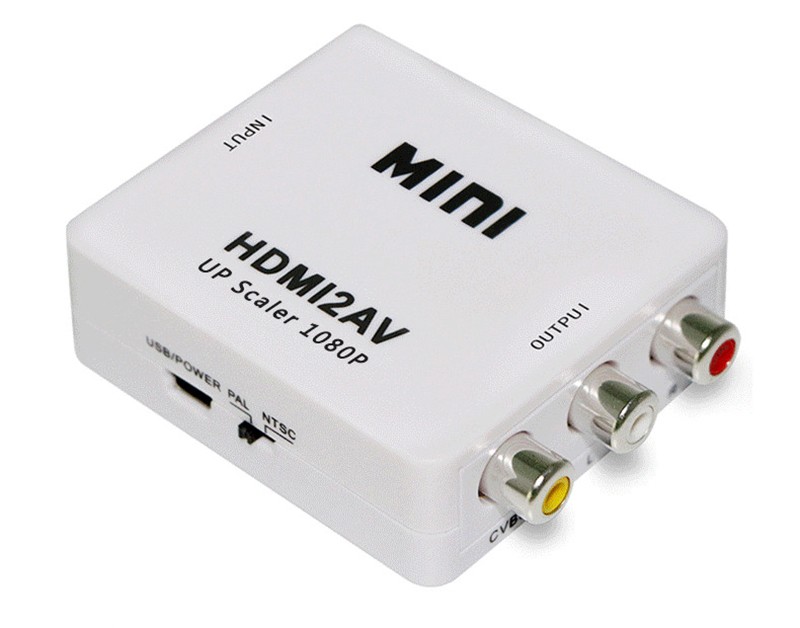

Mini HDMI to AV signal converter that converts HDMI video or audio signals to composite video signal AV (CVBS) and stereo audio signals FL / FR, while supporting DVI system auxiliary signals.

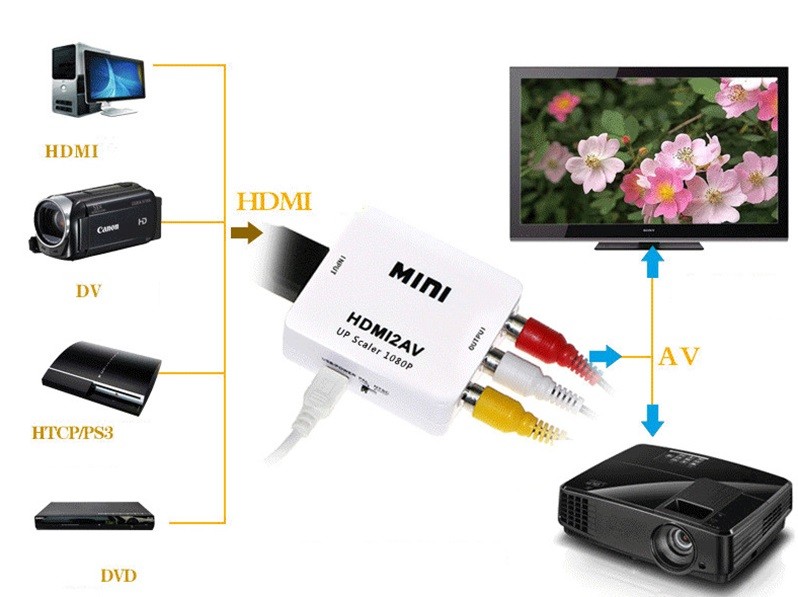

It helps users change high-quality HDMI video signals to standard CVBS signals (standard resolution 480i, 576i), so it can be played on televisions, VHS video recorders, DVD recorders, etc.

It also supports NTSC and PAL two television formats as below:

Specifications:

• No driver installation required, portable, flexible, plug and play.
• Low power consumption, no power adapter.
• Supports NTSC and PAL two standard television format outputs
• Compatible with HDMI1.3

Features:

• HDMI input resolution:
  • 640x480 at 60Hz, 800x600 at 60Hz, 1024x768 at 60Hz, 1280x720 at 60Hz,
  • 1280x1024 at 60Hz, 1360x768 at 60Hz, 1600x1200 at 60Hz,
  • 1920x1080 at 60Hz, 480i / 60Hz, 480p / 60Hz, 576i / 60Hz,
• CVBS output: PAL, NTSC_M, (NTSC_J)

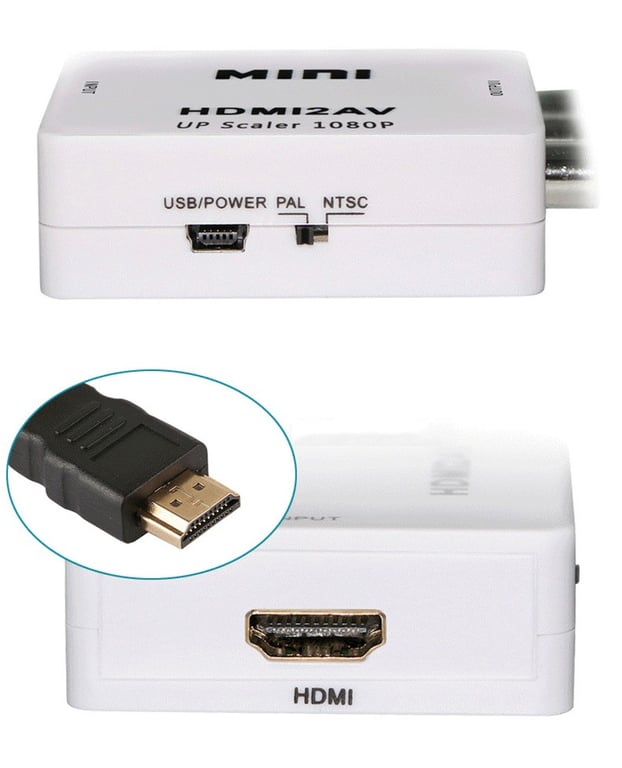

• Input ports: 1xHDMI.

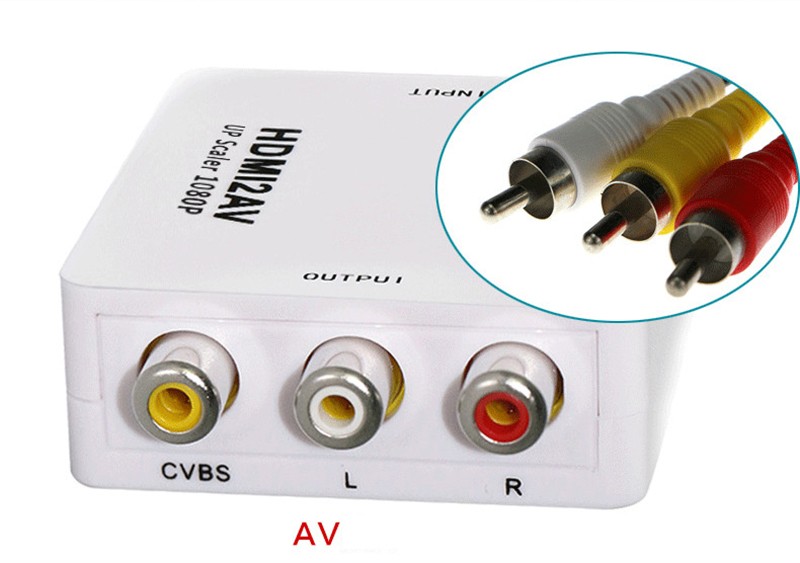

• Output ports: 1xRCA (yellow, white, red)
• Dimensions: 6.6 x 5.5 x 2.0 cm
• Weight: 40g
• Package contents:
  • HDMI to AV converter
  • USB cable - length 80 cm
  • User manual
