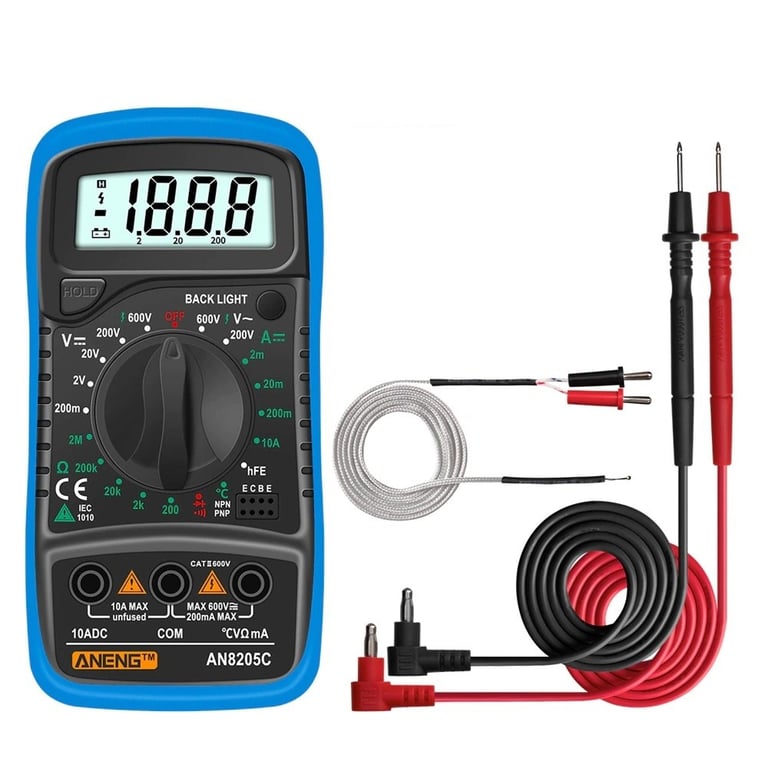

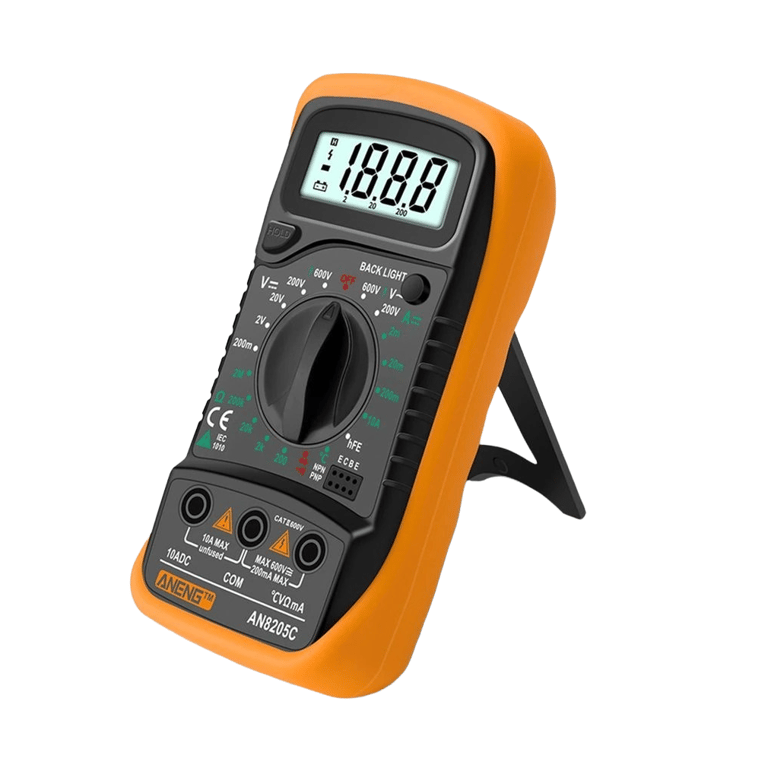

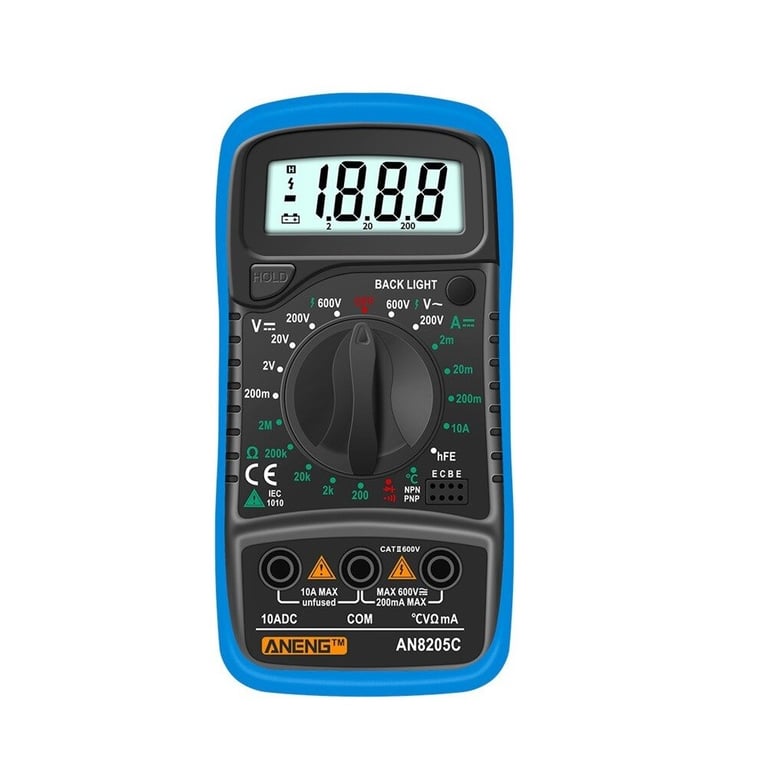

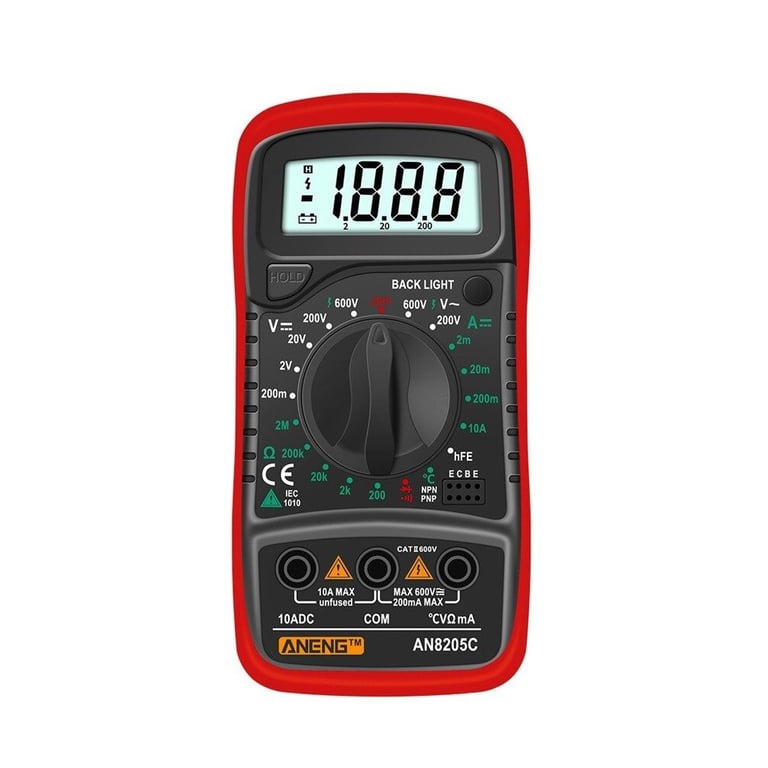

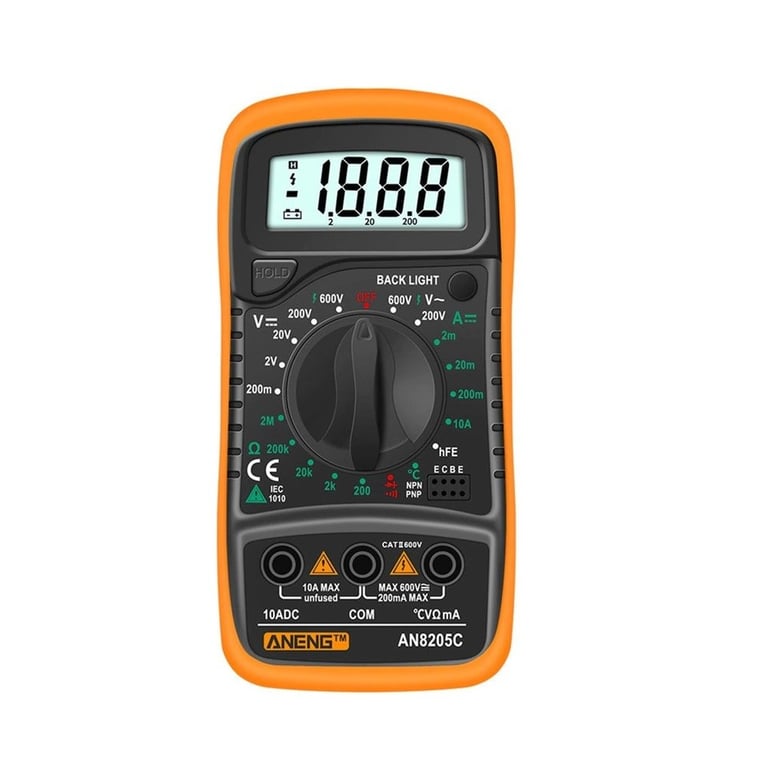

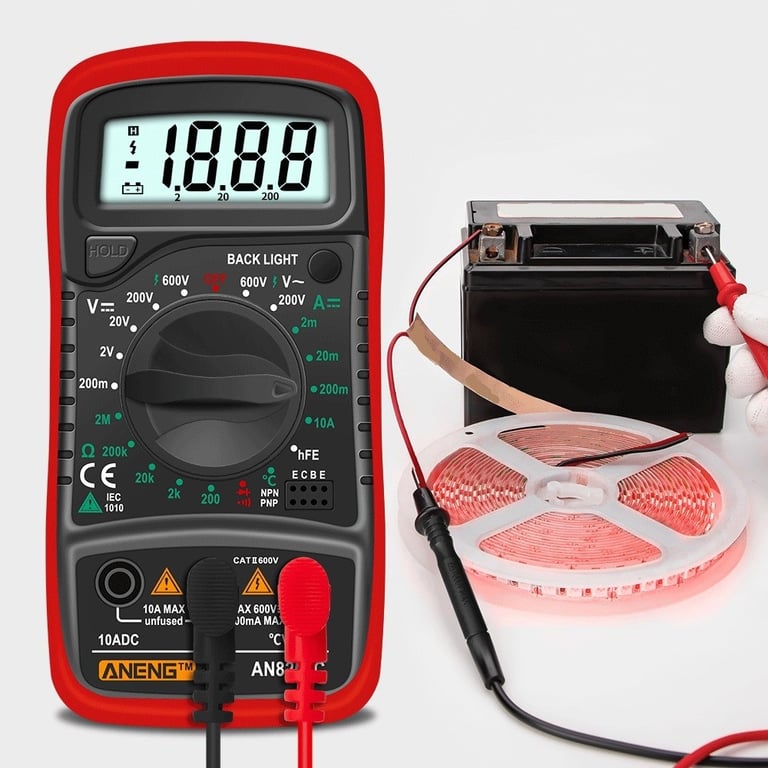

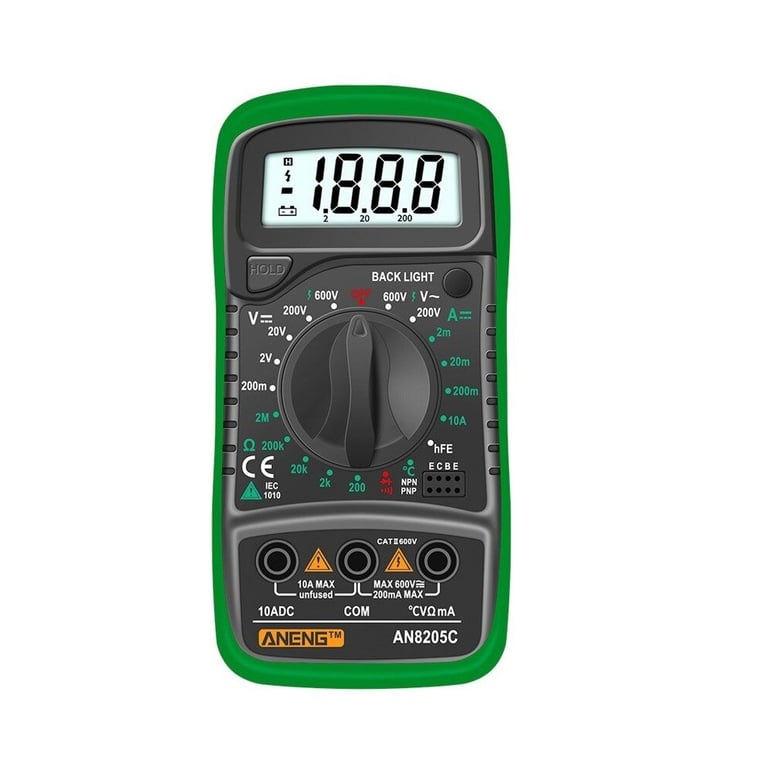

This digital multimeter is the ideal assistant for repairing mobile phones or other electrical devices. Important functions include measuring direct current (DC) and alternating current (AC) voltage, electrical resistance, and direct current (DC) current. Storing measured values is also a very important feature and will certainly make your work easier, as you won't have to complicate things by writing down or remembering data.


Direct Current (DC) Voltage:

• Maximum DC Voltage: 600 V
• Minimum DC Voltage: 200 mV
• Accuracy ± 0.5 %

Alternating Current (AC) Voltage:

• Maximum AC Voltage: 600 V
• Minimum AC Voltage: 200 mV
• Accuracy ± 1 %

Direct Current (DC) Current:

• Maximum DC Current: 10 A
• Minimum DC Current: 2 mA
• Accuracy ± 2 %

Electrical Resistance:

• Maximum Resistance: 2 MΩ
• Minimum Resistance: 200 Ω
• Accuracy ± 0.8 %

Temperature:

• Maximum Temperature: 1300 °C
• Minimum Temperature: -20 °C

Measurement Functions: diode test, DC current measurement, resistance measurement, backlight, temperature

Features: LED flashlight, data storage

Maximum Display Count: 1999

Power Source: 1x 6F22 battery (not included)

Dimensions: 14.3 x 7.2 x 3.5 cm

Package Contents: 1 piece
