Product description

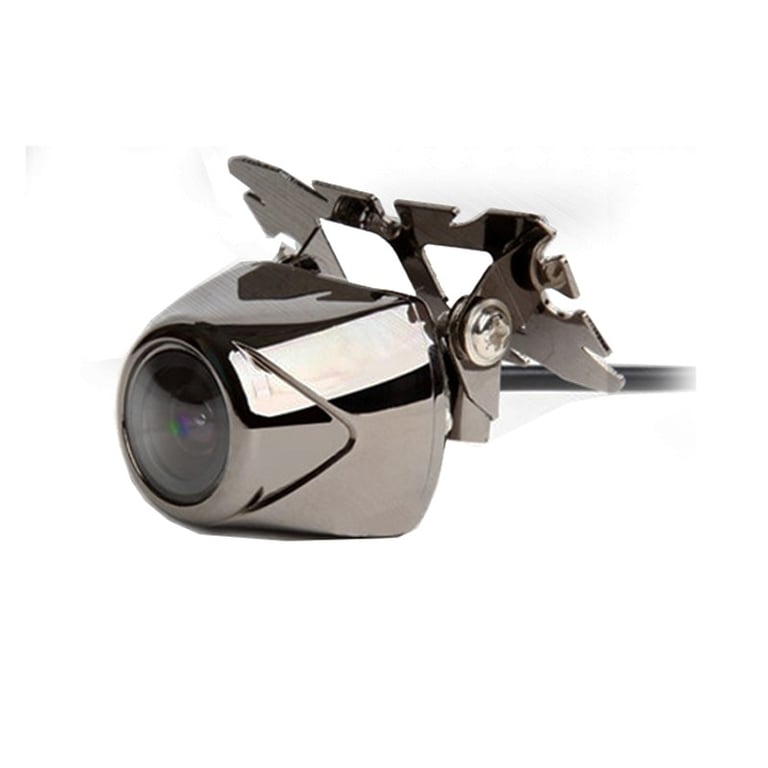

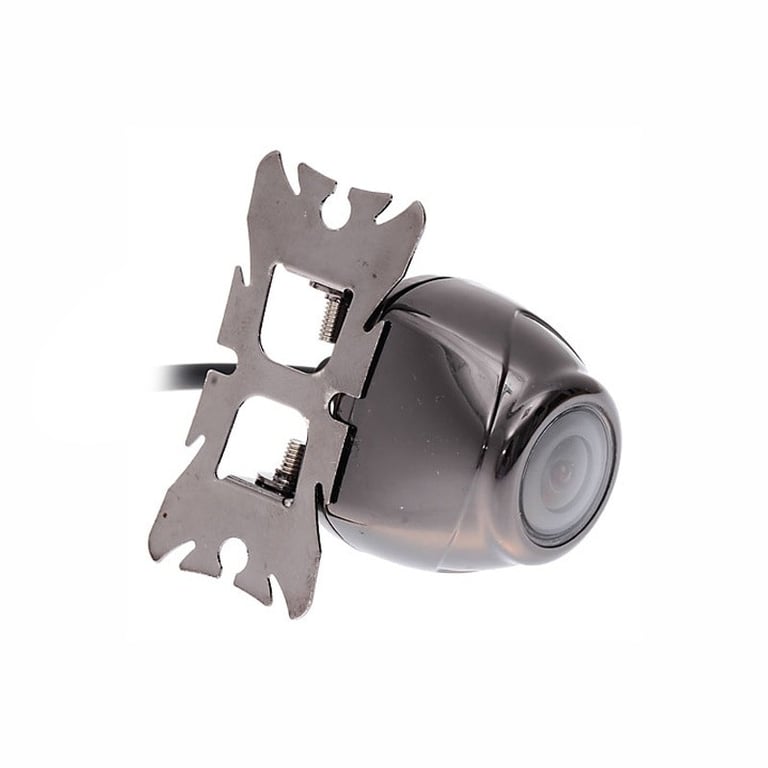

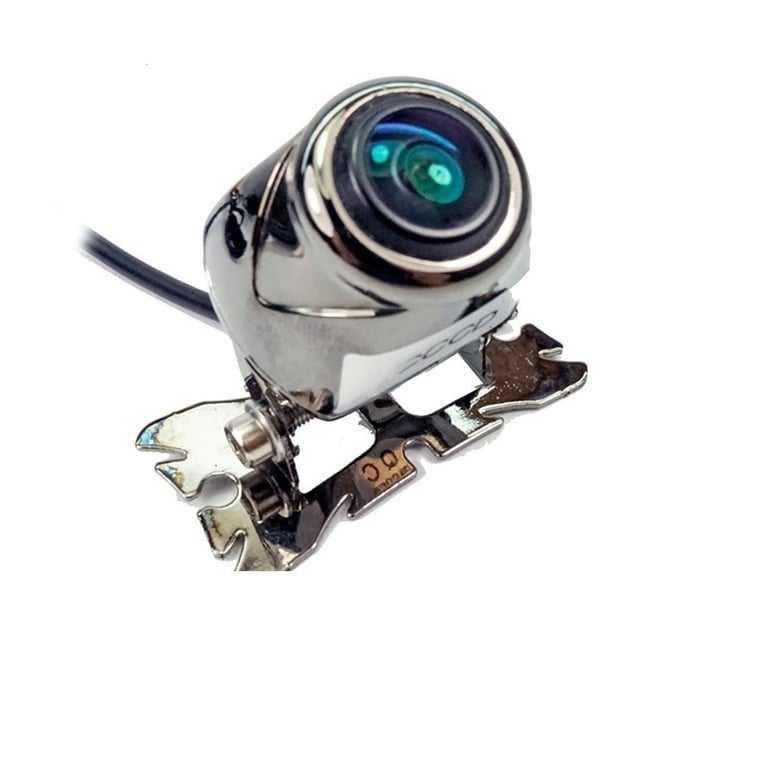

Parking Dash Camera

Variants:

• 1 - CCD
• 2 - Sony CCD

Variant 1:

Image Sensor: 1/3 inch CCD

Video Format: NTSC

Effective Resolution: 720 x 480 px

Sensor Area (mm): 3.3 x 2.6

Horizontal Resolution: 520 TVL

Minimum Illumination: 0.1 Lux

Horizontal Frequency: 15.625 Khz

Vertical Frequency: 50 Hz

Video Output: 1.0 Vp-p 75 ohm

AGC: automatic

BLC: automatic

Night Vision: Yes

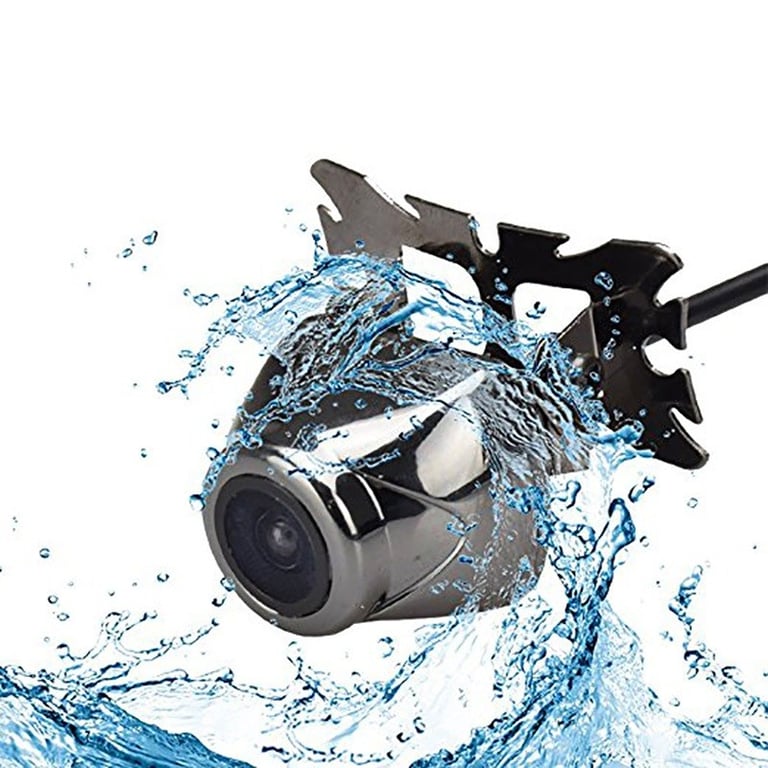

Waterproof: IP67-68

Signal-to-Noise Ratio: 48 dB

Voltage: DC 12V

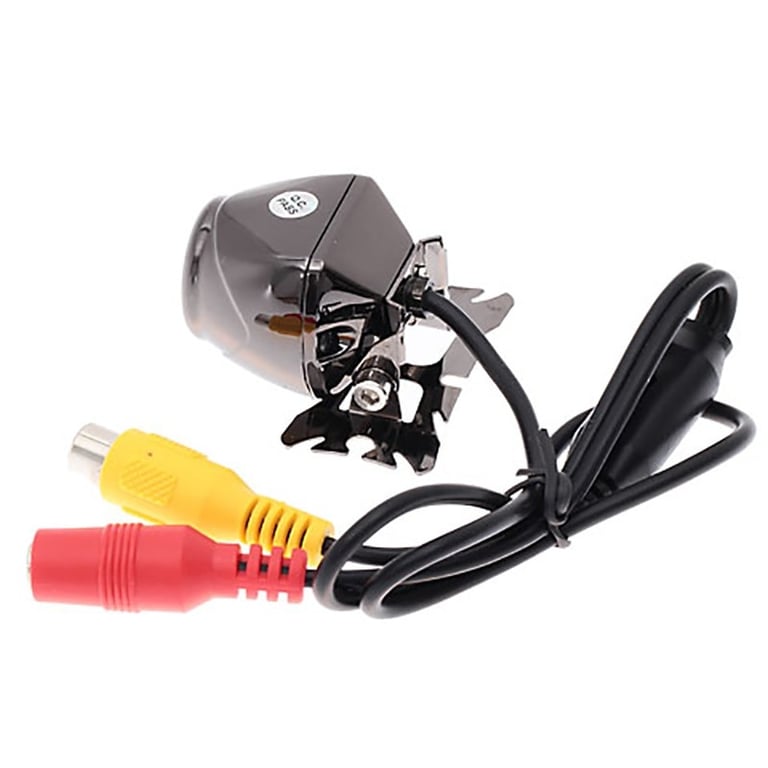

Package Contents: 1x camera, 1x video cable, 1x power cable, 1x user manual

Variant 2:

Image Sensor: 1/3 inch Sony CCD

Video Format: NTSC

Effective Resolution: 728 x 582 px

Sensor Area (mm): 3.3 x 2.6

Horizontal Resolution: 600 TVL

Minimum Illumination: 0.1 Lux

Horizontal Frequency: 15.625 Khz

Vertical Frequency: 50 Hz

Video Output: 1.0 Vp-p 75 ohm

AGC: automatic

BLC: automatic

Night Vision: yes

Waterproof: IP67-68

Signal-to-Noise Ratio: 48 dB

Voltage: 12V

Package Contents: 1x camera, 1x video cable, 1x power cable, 1x user manual
